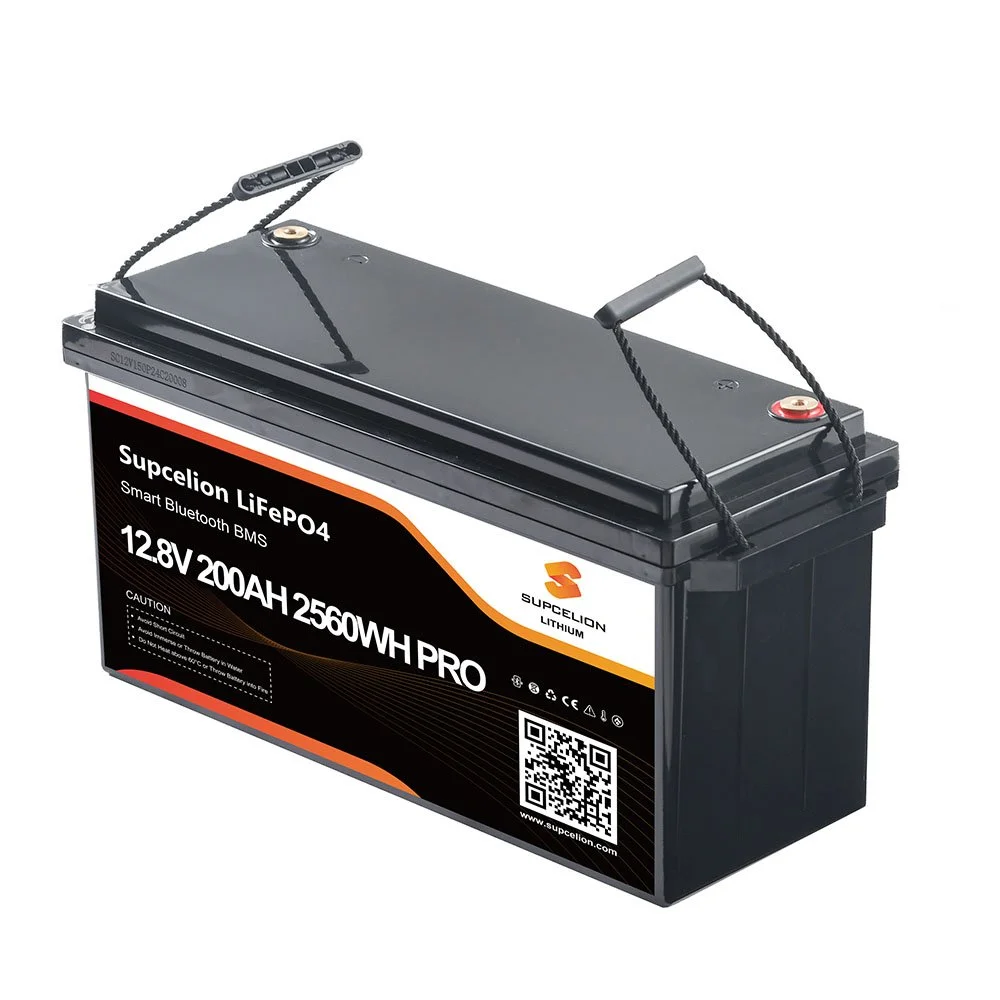

Supcelion 12.8V 200Ah Pro Lithium Battery-Compact & Lightweight
LiFePO4 Battery SCB12200PRO
Introducing the SCB12.8V200Ah PRO lithium battery, IEC 62619 certified and IP65 rated, a superior upgrade to the standard 12.8V 200Ah model. This PRO version is designed to be more compact and lighter, without sacrificing performance or reliability.
LiFePO4 Battery SCB12200PRO
Introducing the SCB12.8V200Ah PRO lithium battery, IEC 62619 certified and IP65 rated, a superior upgrade to the standard 12.8V 200Ah model. This PRO version is designed to be more compact and lighter, without sacrificing performance or reliability.
LiFePO4 Battery SCB12200PRO
Introducing the SCB12.8V200Ah PRO lithium battery, IEC 62619 certified and IP65 rated, a superior upgrade to the standard 12.8V 200Ah model. This PRO version is designed to be more compact and lighter, without sacrificing performance or reliability.
-
Model: SCB12.8V200AHPRO
BMS (Battery Management System): Integrated
Rated capacity: 200Ah/2560Wh
Number of cycles: >4000
Weight: 20.9 kg
Dimensions (L x W x H) in mm: 502*186*246
Operating voltage range: 10-14.6V
Rated voltage: 12.8V
Warranty: 5 year
Material of case: ABS
Terminals: M8
-
Charging characteristics: CCCV/IU
Charging voltage: 14.6V
Recommended charge current: 40A
Maximum charge current: 100A
Maximum discharge current：200A
Discharge Over Current Protection Current（200-500ms）(A)：660±100A
-
Temperature range (discharge): -20 〜60 °C
Temperature range (charge)*: 0 ~ 45 °C
Temperature range (storage): -5 〜35 °C
Ingress protection code: IP65
Application/ Interconnection: Series and parallel connection for 12V applications.
Monitoring: Bluetooth 4.0 with smartphone app
Connection: Can be connected in series and parallel
Key Advantages:
Enhanced Portability: Smaller dimensions and reduced weight make it easier to install and ideal for limited space applications.
Advanced BMS: Integrated Battery Management System ensures greater safety and efficiency, protecting against over-voltage, short circuits, and temperature fluctuations.
High Performance: Delivers consistent and reliable power for demanding applications, such as RVs, solar energy storage, off-grid living, backup power, EVs, golf carts, commercial use, and medical equipment.
Long Cycle Life: Offers over 4000 cycles, ensuring years of dependable service.
Real-Time Monitoring: Equipped with Bluetooth 4.0, providing real-time data monitoring through a smartphone or tablet app.
Superior Safety: Built with lithium iron phosphate (LiFePO4) technology, it eliminates the risk of fire or explosion, and it is IEC 62619 certified and IP65 rated.
No Memory Effect: No need for full charge and discharge cycles, enhancing convenience and battery life.
Efficient Charging: Supports deep and regular discharge and charging cycles, improving overall efficiency.
Durable Build: Constructed with a robust metal casing for added protection and longevity.
Choose the Supcelion 12.8V200Ah PRO for a high-performance, safe, and space-efficient energy solution that meets the demands of modern applications.
