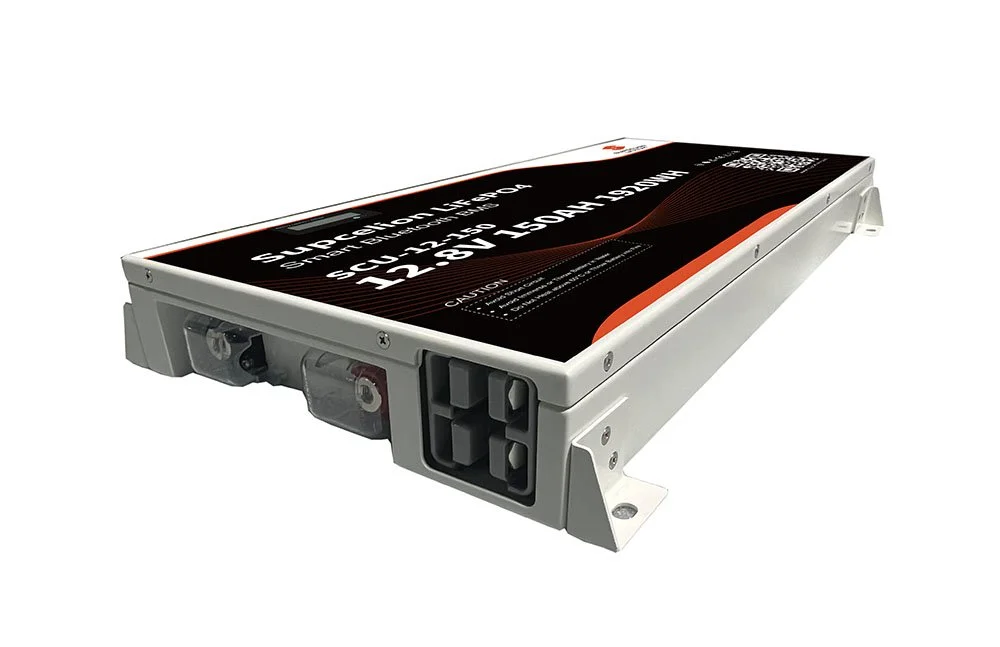

Supcelion 12.8V150Ah Slimline Lithium Battery with Bluetooth
LiFePO4 BATTERY SCU12150
Our 12.8V 150Ah Slimline Lithium Battery offers several advantages over a standard 150Ah lithium battery. It features an integrated BMS for enhanced safety and efficiency, a higher cycle life of over 4000 cycles, and a compact design (570*380*65 mm) that makes it lighter at 23.65kg. The robust metal casing, 5-year warranty, and comprehensive monitoring through LCD and Bluetooth 4.0 with a smartphone app ensure durability and ease of use. Additionally, it supports series and parallel connections, operates within a wider voltage range (10-14.6V), and offers superior temperature tolerance and IP30 protection, making it ideal for diverse applications.
LiFePO4 BATTERY SCU12150
Our 12.8V 150Ah Slimline Lithium Battery offers several advantages over a standard 150Ah lithium battery. It features an integrated BMS for enhanced safety and efficiency, a higher cycle life of over 4000 cycles, and a compact design (570*380*65 mm) that makes it lighter at 23.65kg. The robust metal casing, 5-year warranty, and comprehensive monitoring through LCD and Bluetooth 4.0 with a smartphone app ensure durability and ease of use. Additionally, it supports series and parallel connections, operates within a wider voltage range (10-14.6V), and offers superior temperature tolerance and IP30 protection, making it ideal for diverse applications.
LiFePO4 BATTERY SCU12150
Our 12.8V 150Ah Slimline Lithium Battery offers several advantages over a standard 150Ah lithium battery. It features an integrated BMS for enhanced safety and efficiency, a higher cycle life of over 4000 cycles, and a compact design (570*380*65 mm) that makes it lighter at 23.65kg. The robust metal casing, 5-year warranty, and comprehensive monitoring through LCD and Bluetooth 4.0 with a smartphone app ensure durability and ease of use. Additionally, it supports series and parallel connections, operates within a wider voltage range (10-14.6V), and offers superior temperature tolerance and IP30 protection, making it ideal for diverse applications.
-
Model: SCU12.8v150ah
BMS (Battery Management System): Integrated
Rated capacity: 150Ah/1920Wh
Number of cycles: >4000
Weight: 23.65kg
Dimensions (L x W x H) in mm: 570*380*65 Excluding terminal
Operating voltage range: 10-14.6V
Rated voltage: 12.8V
Warranty: 5-year
Material of case: Metal
Terminals: M8 Pole & Anderson
-
Charging characteristics: CCCV/IU
Charging voltage: 14.6V
Recommended charge current: 30A
Maximum charge current: 75A
Maximum discharge current: 150A
Discharge Over Current Protection Current（15-25S）： 160A±10A
-
Temperature range (discharge): -20 ~ 6 0 ℃
Temperature range (charge)*: 0℃~45℃
Temperature range (storage): -5℃~35℃
Ingress protection code: IP30
Application/ Interconnection: App
-
Monitoring: LCD&Bluetooth4.0 with smartphone app
Connection: Can be connected in series and parallel
